SC-FC Fiber Optic Patch Cable (23880108) – SimpleSpark

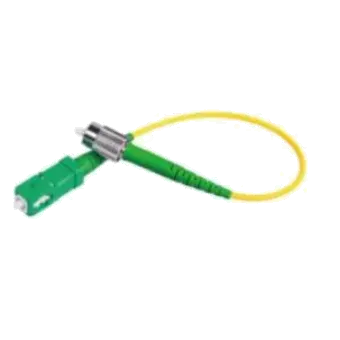

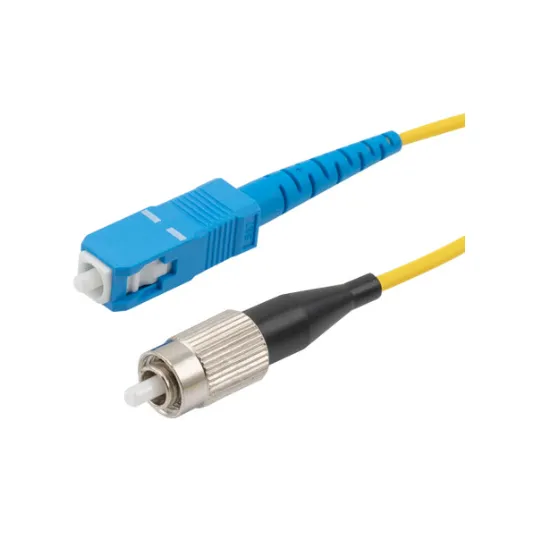

SC-FC Fiber Optic Patch Cable (23880108)


The SC-FC Fiber Optic Cable offers secure, low-loss connectivity between SC and FC interfaces, supporting both single-mode and multimode transmission. Ideal for telecom, lab, and legacy systems requiring precise, vibration-resistant connections.









🔹 Full Description

The SC-FC Fiber Optic Cable combines two reliable connector types: SC (Subscriber Connector) and FC (Ferrule Connector). This hybrid cable is ideal for interfacing newer network infrastructures with legacy systems, offering seamless integration across diverse optical environments.

The SC connector provides a push-pull locking mechanism for fast, user-friendly connection, while the FC connector uses a threaded coupling mechanism that delivers exceptional stability and resistance to vibration. The cable supports both single-mode (OS2) and multimode (OM1–OM4) fibers and features zirconia ceramic ferrules for precise alignment, low signal loss, and consistent performance in demanding telecom, lab, and data center settings.


🔹 Key Features

  • Connector Type: SC to FC (UPC/APC available)

  • Fiber Mode: Single-mode (OS2) and Multimode (OM1/OM2/OM3/OM4)

  • Hybrid Design: Combines SC push-pull and FC threaded lock for secure, versatile connectivity

  • Low Insertion Loss: ≤ 0.3 dB for stable optical performance

  • Ferrule Material: High-precision zirconia ceramic

  • Jacket Type: PVC or LSZH; available colors: yellow, orange, aqua

  • Length Options: 0.5m to 30m (custom lengths available)

  • Applications: Telecom, data centers, lab testing, instrumentation, FTTH/FTTB

SKU: 23880108 Category:

Technical Specifications





Item Details
Product Name SC-ST Fiber Optic Patch Cable (23880107)
Connector Type SC (UPC/APC) to ST (UPC/APC)
Fiber Mode Single-mode (OS2) / Multimode (OM1, OM2, OM3, OM4)
Core/Cladding 9/125μm (SM), 50/125μm or 62.5/125μm (MM)
Cable Diameter 2.0mm or 3.0mm
Insertion Loss ≤ 0.3 dB
Return Loss ≥ 50 dB (UPC), ≥ 60 dB (APC)
Cable Jacket Material LSZH or PVC
Operating Temperature -20°C to +70°C
Storage Temperature -40°C to +85°C
Length Options 0.5m, 1m, 2m, 3m, 5m, 10m, 20m, 30m, or custom lengths
Certifications RoHS, CE, ISO9001, IEC, TIA/EIA
Applications Telecom, FTTH/FTTB, test labs, instrumentation, legacy integration
